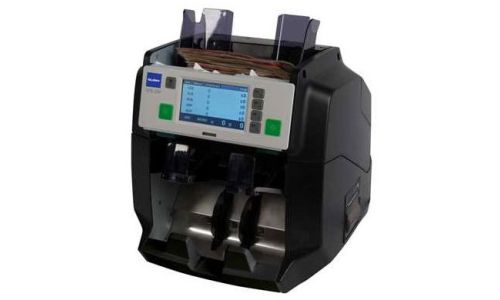

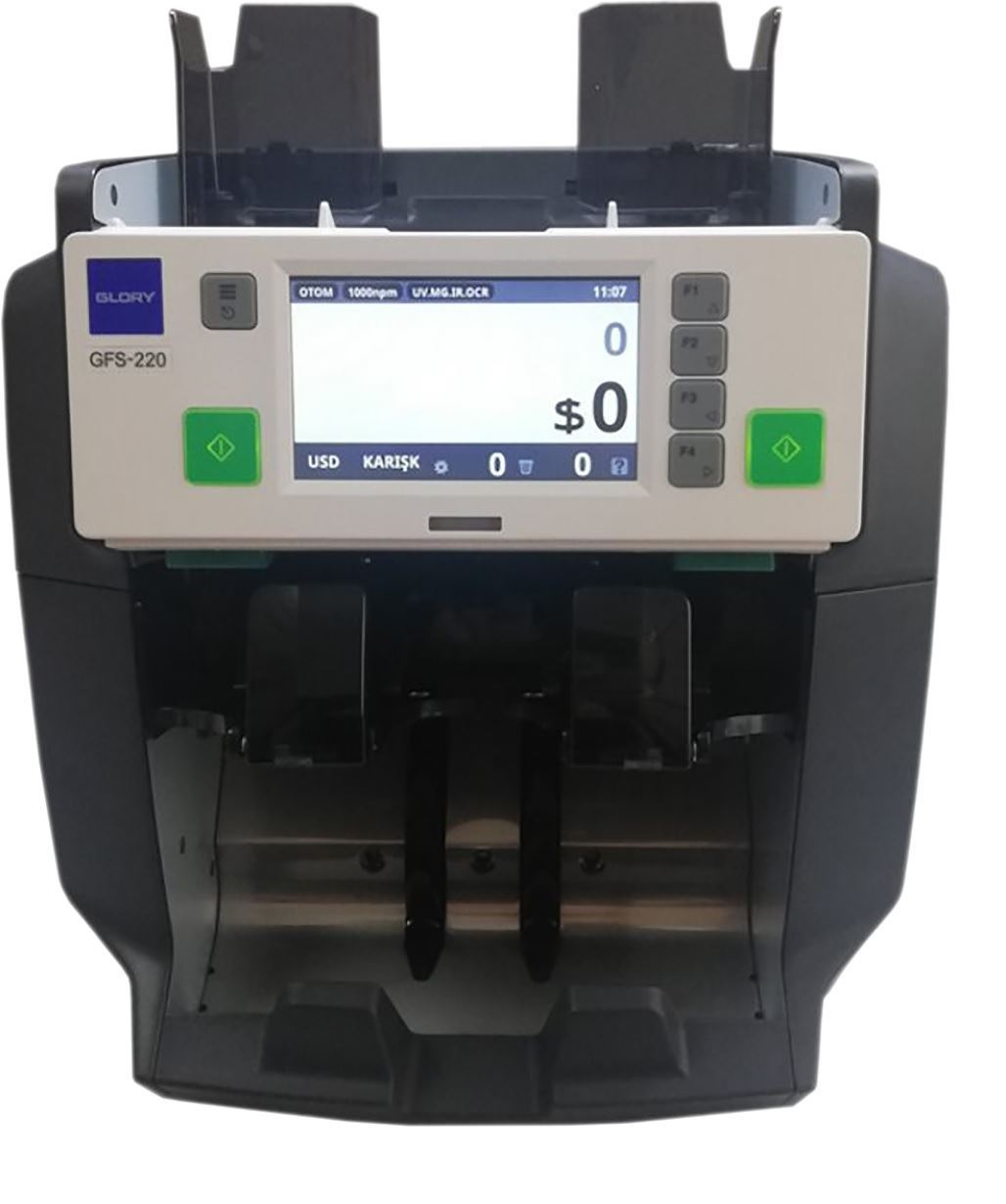

Glory’s GFS-220 banknote counter improves operational efficiency with superior speed, fitness analysis, and authentication. Multi-currency value count, detailed counterfeit analysis, and optical character recognition are all available features. Local presentation of banknote information on a large touchscreen display, plus remote access for data capture and system update provides an enterprise-ready solution.

The GFS-220 banknote counting and sorting solution offers:

• Best-in-class authentication for bank teller counter applications, a compact desktop solution for banknote counting and sorting challenges.
• Lowest cost-per-note for count/authenticate functions, offering reliable, continuous and uninterrupted use plus denomination and authentication of up to 40 different currencies at a processing speed of up to 1,200 notes per minute.
• Powerful, with state-of-the-art authentication, fitness and serial number recognition capabilities, on-board data storage and ability to recall and display each banknote for additional staff review.
• Easy maintenance with full access to the note path, accessible sensors, and remote diagnostic support available, all in a compact, lightweight package.

Designed for organisations looking to deploy an affordable yet powerful sorting solution, the GFS-220 can revolutionise desktop cash handling in small, medium and large cash processing environments. Processes which were once only achievable on large sorting systems are now possible in front line tasks.

Technical Specification

Currency pattern

• Programmable up to 40 currencies max.3

Detectors

• Dual CIS
• IR
• UV (ultraviolet/FL (fluorescence)
• Magnetics
• Full width tape detection

Speed

• Piece counting: 1,300 notes per minute
• Value counting: 1,200 notes per minute
• Fitness: 1,000 notes per minute
• OCR: 1,000 notes per minute
• Document size range: 55mm × 100mm – 85mm × 185mm
• Pockets: 1 stacker plus 1 reject
• Hopper capacity: 500 notes (extension1 1000 notes)
• Stacker capacity: 200 notes
• Reject capacity: 100 notes
• Display: 4.3 full colour graphical touch LCD

Connectivity/interface

• 2 × RS332C
• USB 2.0 slave
• USB 2.0 host
• Micro SD card slot
• LAN

Printer connection

Connectable to external POS printer

Dimensions (W × D × H): 303mm × 347mm × 316mm (height with hopper guide: 362mm)
